The Draper Access E [HDTV 16:9] ceiling-recessed Electric Screen 193" is a top-of-the-line projection screen designed for use in large venues such as conference rooms, auditoriums, and theaters. This screen has a 16:9 aspect ratio and is ideal for displaying high-definition content such as movies, videos, and presentations.

The screen has a diagonal size of 193 inches, with a viewing area of 94 1/2 inches by 168 inches. The viewing surface is made of high-quality, white vinyl, which provides a bright, clear picture with excellent contrast and color saturation. The screen's surface is also easy to clean and maintain, ensuring that it remains in pristine condition for years to come.

One of the standout features of the Draper Access E screen is its electric operation. The screen can be controlled using a wall switch or remote control, which makes it easy to raise and lower the screen as needed. The screen also has a motorized trapdoor that opens and closes automatically, providing easy access to the screen and ensuring that it remains protected when not in use.

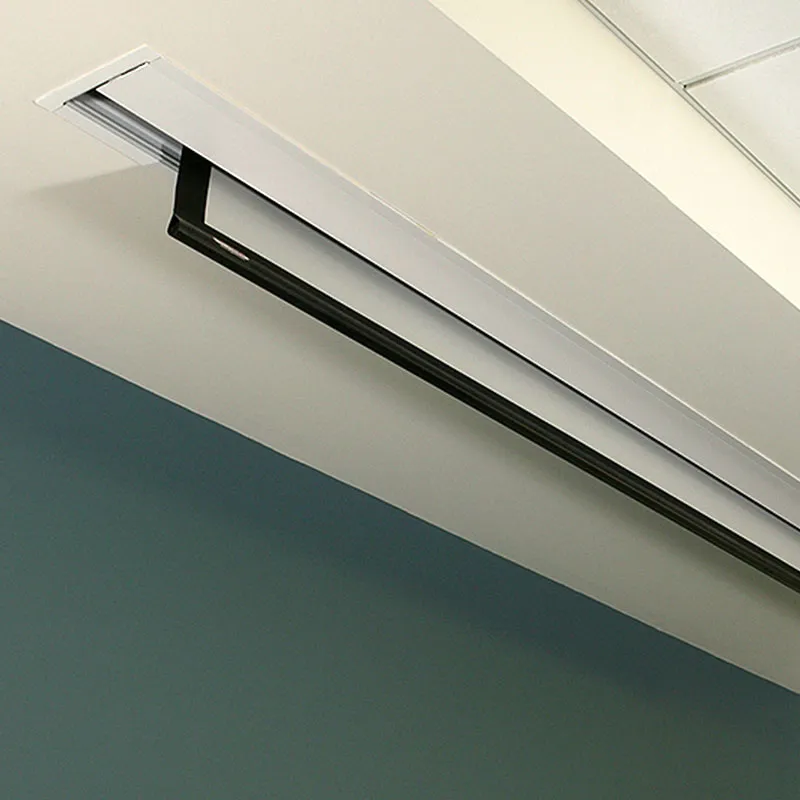

The Draper Access E screen is designed to be ceiling-recessed, which means that it can be installed flush with the ceiling for a sleek and professional appearance. The screen also features a range of adjustment options, including vertical and horizontal positioning, as well as adjustable black borders to ensure that the picture is always perfectly aligned and framed.

Overall, the Draper Access E [HDTV 16:9] ceiling-recessed Electric Screen 193" is an excellent choice for anyone looking for a high-quality projection screen that delivers exceptional performance and durability. Whether you're using it for business presentations, educational lectures, or entertainment purposes, this screen is sure to impress.

Product Specs

•  Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16' (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.

•  Sliding brackets on top of the case allow for adjustments when mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  Low voltage, video interface or other controls can be built into housing for access from below ceiling.

•  White case standard, black available upon request.

•  Custom sizes available.

•  UL Listed.
