Overview

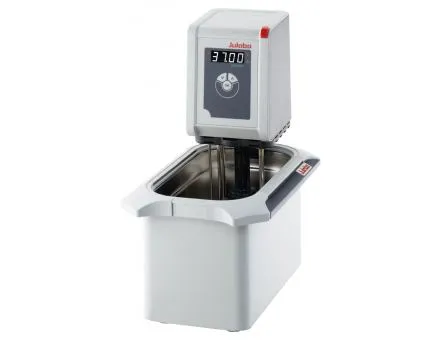

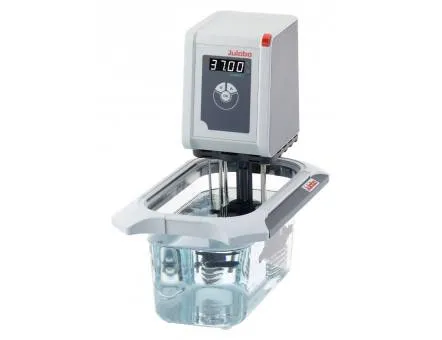

CORIO C-BT19 and C-B5 Open Heating Bath Circulators for internal temperature applications with transparent or stainless steel bath tank options. Open heating bath circulators are designed for internal applications in the circulator bath. The transparent models on this page are equipped with bath tanks made of Plexiglas® or Makrolon®. The circulator can be removed for easy cleaning of the bath tanks.
Available accessories include a variety of test tube racks, immersion-height adjustable platforms and cooling coils (sold separately).
Features:
- Working temperatures from 20 to 100°C
- Bright, white, easy to read display
- Models for internal applications
- Very quiet
- for internal applications
- Precise temperature control
Key Attributes
| Type | Stirred / Circulating Baths |
| Incubation | Yes |
| Refrigeration | Accessory only |
| Temp Range (°C) | A 20 to 100 |
| Capacity (L) | 3.5 to 5 l |
| Circulation | N/A |
| Brand | Julabo |
| MaxFlow Rate (l/min) | 6 |
| Temp Stability (°C) | ±0.03 |
| Timer | Yes |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | N/A |
| Tank Material | Optional Plexiglas/Makrolon or stainless steel |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 1 |
| Weight (lb) | 15.4 transparent, 16.1 Stainless Steel |
| Width (in) | 9.1 |
| Depth (in) | 15 |
| Height (in) | 16.1 |
Manufacturer Specifications
Dimensions 9.1 x 15 x 16.1 in.
Filling volume 3.5 ... 5 l
Weight 16.1 lbs
Working temperature range 20 ... 100 °C
Temperature stability ±0.03 °C
Setting the resolution of the temperature display 0.1 °C
Temperature display resolution 0.01 ... 0.1 °C
Ambient temperature 5 ... 40 °C
Data based on voltage version: 115V/60Hz (Nema N5-15 Plug)
Heating capacity 1 kW
Viscosity max. 1 cST
Circulation capacity flow rate 6 l/min
Usable bath opening 5.9 x 5.9 / 5.9 in.
Cooling coil accessory only
Classification according to DIN12876-1 Classification I (NFL)
IP Code according to IEC 60529 IP 21
Pump type Immersion Pump
Temperature control PID1
Absolute temperature calibration 1 Point Calibration
Temperature display LED
Temperature setting Keypad
